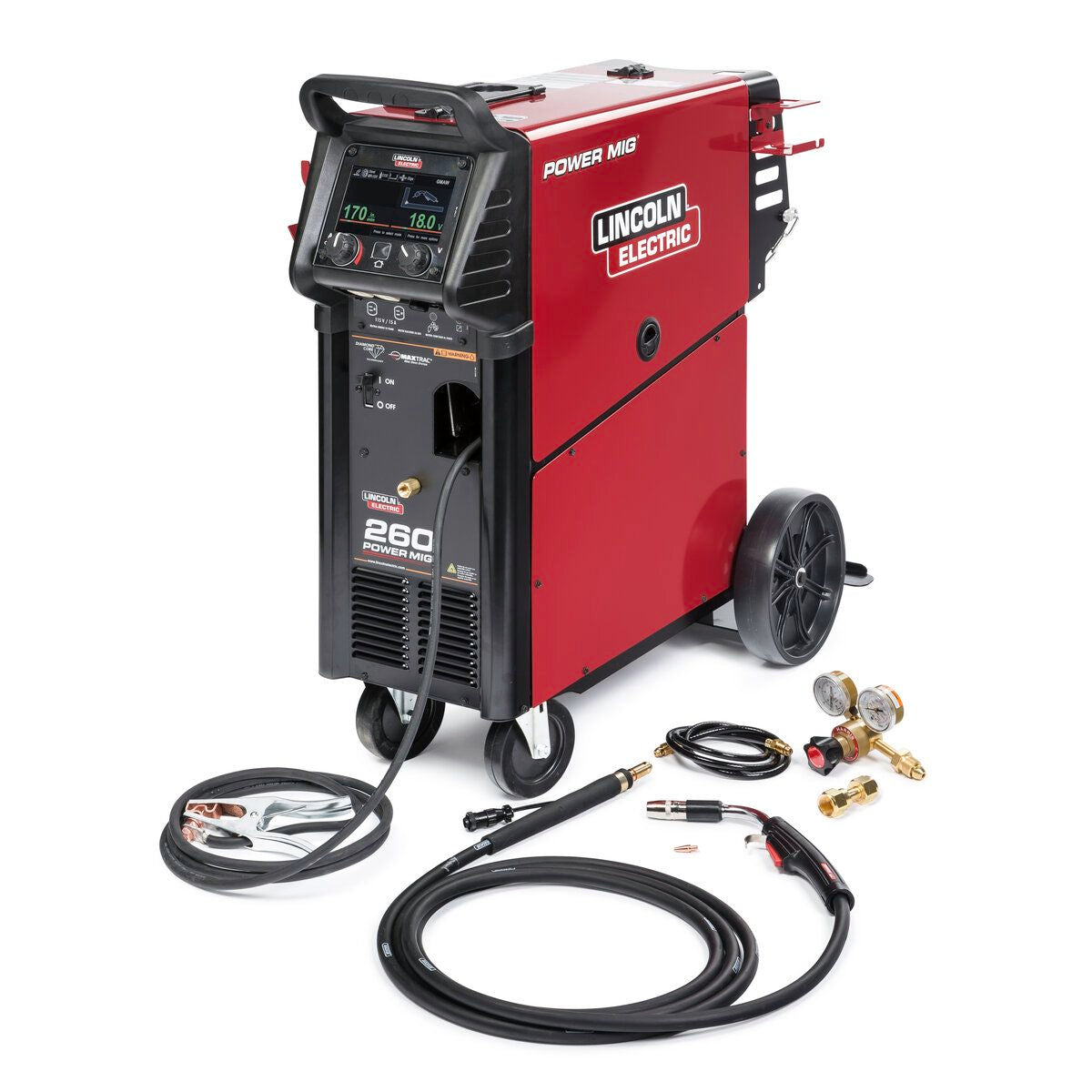

POWER MIG 260 MIG Welder

Features & Benefits

FABRICATION SIMPLIFIED

The POWER MIG 260 welding machine sets the standard for MIG and Flux-Cored welding in light industrial shop fabrication, maintenance, and repair work. The seven inch color display with automatic controls make setup and operation intuitive and simple. The POWER MIG 260 welder offers superior welding performance and a multitude of professional features.

Simplified

•  Visualize Your Weld with ArcFX Technology
• Ready.Set.Weld Quick Set-Up
• Automatic Settings - Provide Optimal Weld Parameters
• Universal Input Voltage

Innovative

•  7 inch Color Display
• Memory Capability
• Auto Calibration Optimizes Push-Pull Aluminum Performance

Ergonomic

•  Easy to View and Adjust Settings
• Tilting Gas Bottle Tray
• Front Access to 115V Outlet and Gun Connections
• Small Footprint

ADVANCED FEATURES

•  Automatic settings provide optimal weld parameters
• Memory Capability - Ability to load and save weld settings
• Run-in - Adjustable speed at which wire strikes the plate to enhance starting
• Burnback - Adjustable time delay between turning off the arc and the wire feed to prevent wire sticking to the puddle
• Spot Timer - Adjustable arc time for repetitive tack and spot welds

• Processes

  MIG, Flux-Cored

  Input Power

  208/230/460/575/1/60

  Input Current

  59/55/27/21

  Mode

  CV

  Polarity

  DC

  Output Range

  30-300A

  Rated Output

  250A/26.5V/40%

  MIG Wire Feed Speed Range

  50 - 700 in. (1.3 - 17.8 m)

  Dimensions

  18in x 37.3in x 40.4in (457.2mm x 947.42mm x 1026.16mm)

  Weight

  247lbs. (112.039kg)

  MAXTRAC Wire Drive Magnum PRO 250L Welding Gun Quick Storage Accessories 10 ft Work Cable with Clamp Gas Regulator 10 ft Power Cable with Plug
