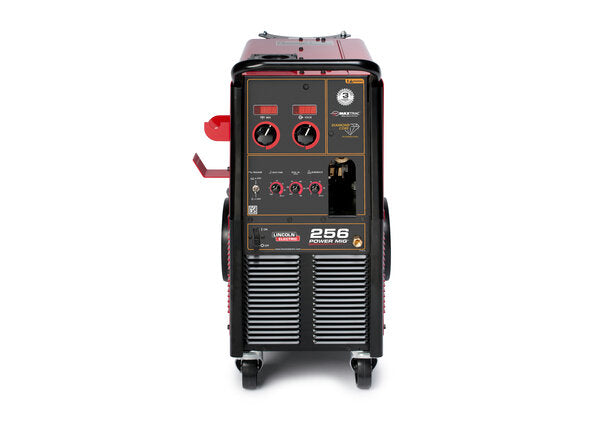

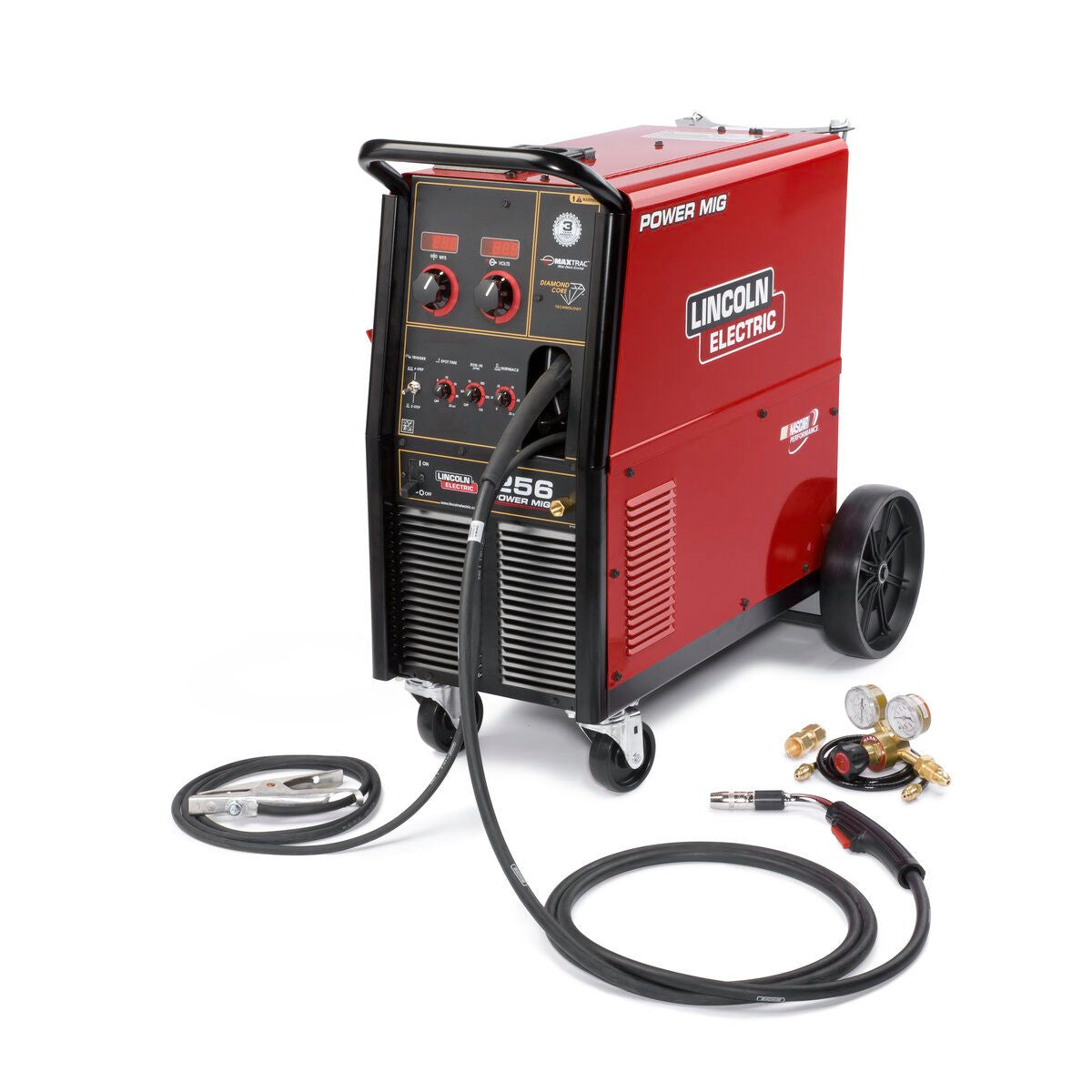

POWER MIG 256 MIG Welder

POWER MIG 256 welder performs MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.

Features & Benefits

POWER MIG. The Professional's Choice^SM

The POWER MIG 256 sets the standard for MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.

• Diamond Core Technology  - Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltage
  sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
• MAXTRAC cast aluminum industrial wire drive - Features dual driven rolls, regulated wire feed speed control, brass-to-brass
  connections and Lincoln's 100% wire supporting split wire guide system.
• Digital meters - For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
• New! Magnum PRO gun and cable 15 ft. (4.5 m) - Makes it easy to reach your work.
• Copper Plus contact tips - Larger tip diameter and mass improves heat dissipation to increase tip life.
• Add a spool gun - The POWER MIG 256 is spool gun ready for the premium Magnum 250LX gun and spool gun capable with the
  Magnum SG (requires adapter).
• 115V auxiliary receptacle - (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
• New! Great value-adding features -

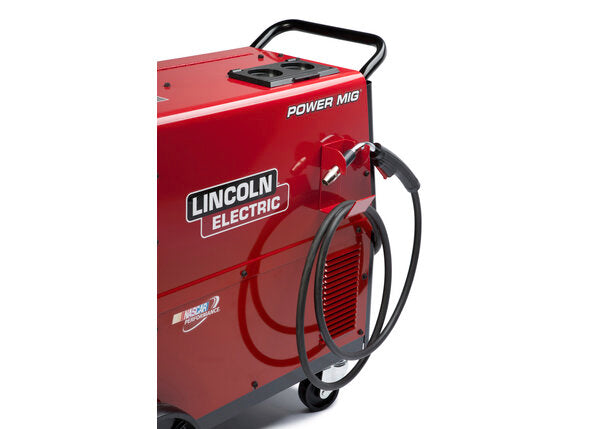

  •  Coil Claw Cable Management system keeps your workstation organized.
  •  Convenient top-mounted gun expendables tray.
  •  All metal case front.

NOTE: The POWER MIG 256 cannot be powered by an engine-driven welder.

Process

MIG; Flux-cored

Processes

MIG, Flux-Cored

Dimensions (mm)(HxWxD)

32" x 19" x 39"

Dual Voltage

Yes

Duty Cycle

250A/26V/40%

Gas Hose Included

Yes

Gun Cable Length

10 ft.

MIG Ready

Yes

Regulator Included

Yes

Shielding Gas Required

No

Digital Display

Yes

Model

Power MIG 256

Volts

230/460/575

Wire Feed Speed Control

Yes

Welding Amperage Range

30-300 Amps DC

Weight (lb)

220 LB

Input Power

230/460/575/1/60

Input Current

56/52A

Mode

CV

Polarity

DC

Output Range

30-300A DC

Rated Output

250A/26V/40%

Typical Application

Metal fabrication; Maintenance and repair; Farm; Autobody; Light industrial

Cored Wire Diameter

0.035 - 0.045 in. (0.9 - 1.2 mm)

Solid Wire Diameter

0.025 - 3/64 in. (0.6 - 1.2 mm)

MIG Wire Feed Speed Range

50 - 700 in. (1.3 - 17.8 m)

Warranty

3 Years

Dimensions

18.9in x 31.8in x 38.8in (480mm x 808mm x 985mm)

Weight

245lbs. (111.132kg)
